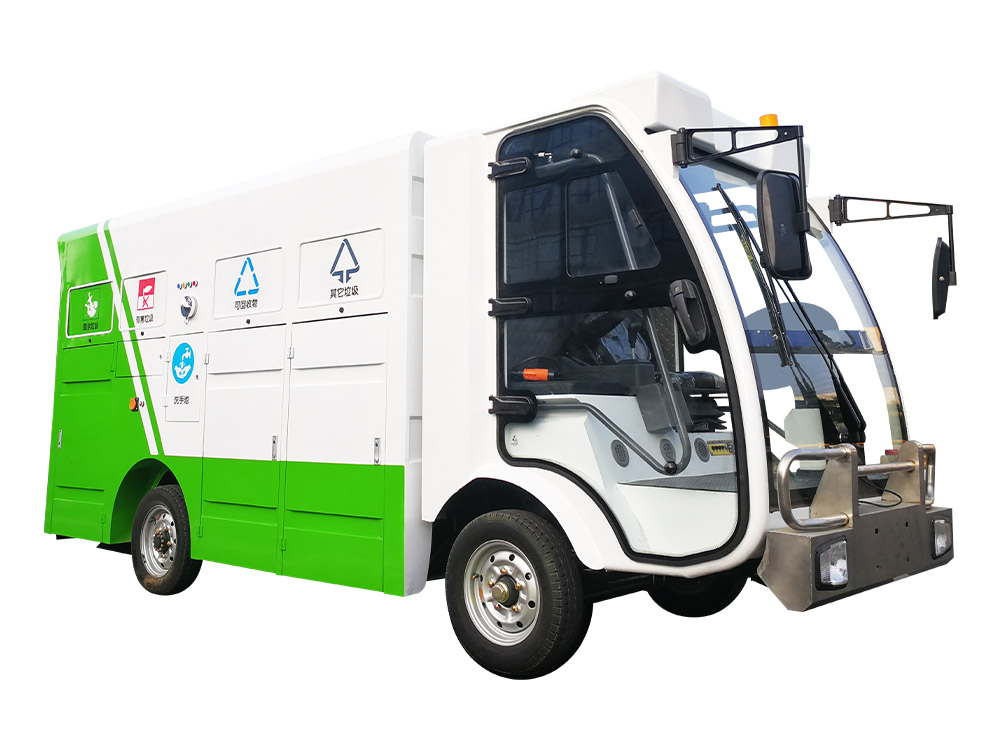

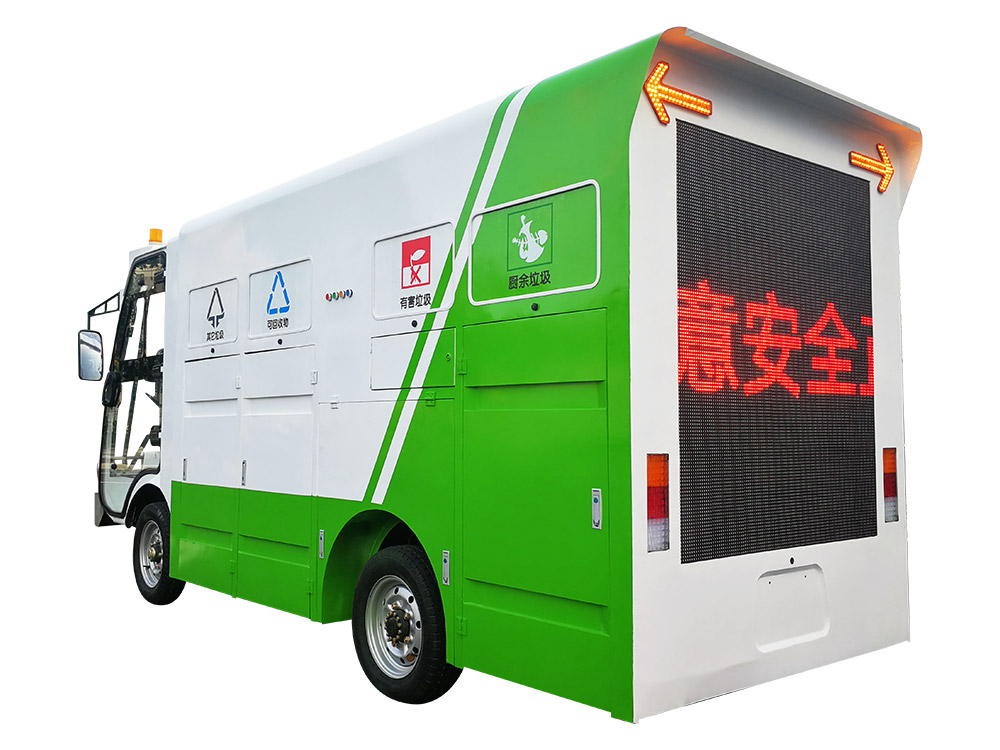

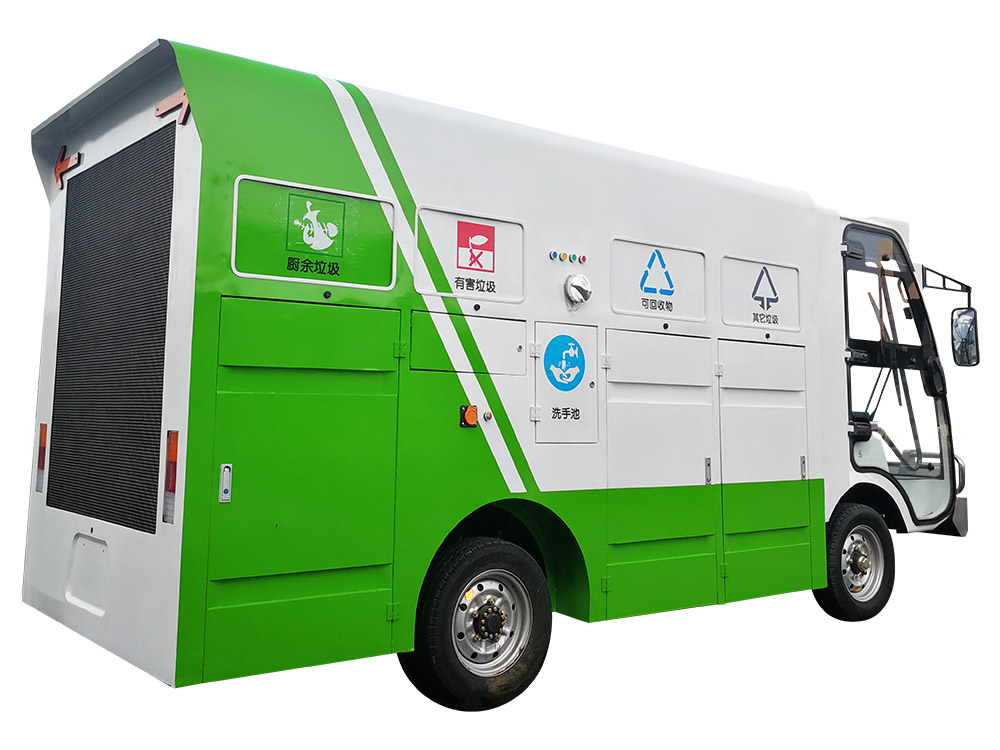

Ruibao Y18 pure electric garbage truck is mainly used for regular and fixed-point classified delivery, collection and transportation of four types of garbage in streets, commercial areas, property communities, towns, scenic spots, schools and other places. It is pure electric operation, low cost and zero emission.
◆ body: fully enclosed cab, fully transparent glass on three sides, double doors, front stainless steel bumper, high-quality and high-strength metal body, good line of sight, safe and beautiful;
◆ batteries: 12 * 6V / 200ah maintenance free lead-acid batteries and 72V / 250ah lithium batteries are optional;

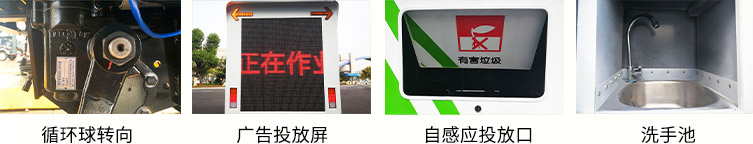

◆ delivery screen: 1280 mm is equipped at the rear of the vehicle × 1120 mm advertising screen with an area of 1.4m 2， Resolution 112 × 224, different words can be played according to customer needs;
◆ hand washing basin: the right side of the vehicle is equipped with a hand washing basin, which can be used to clean and wash hands after dismantling the garbage can and putting garbage;
◆ garbage outlet: 6 240L garbage cans and 2 140L hazardous garbage boxes are equipped with 8 outlets to trigger the inductive opening and closing function. Under normal conditions, it is completely closed to prevent the emission of peculiar smell in the garbage can. The lowest point of the garbage outlet is 1400mm above the ground; 6 240L trash can trays with electric lifting function;
◆ steering system: high power recirculating ball integrated electric power steering system;
◆ temperature control system: cold and warm air conditioner (limited to lithium battery version).
| Parameters | Ruibao Y18 pure electric garbage truck |
| Voltage / rated power | 72V/7.5Kw |
| Mileage | ≥100Km |
| Number of barrels | 6 * 240L (garbage cans) + 2 * 140L (harmful garbage boxes) |
| Rated load | 1400kg |
| Maximum driving speed | 35Km/h |
| braking distance | ≤5m |
| Climbing ability | ≥20% |
| Turning radius | ≤6m |
| Dimensions | 4800*1530*2050mm |
| Volume of clear water tank | 100L |
| Volume of sewage tank | 50L |
| Pump pressure | 2.8Mpa |
| Delivery screen area | 1.4㎡ |
| Net weight | 1900kg（Lead acid）、1800kg（Lithium battery） |
| Number of passengers allowed | 2 people |
