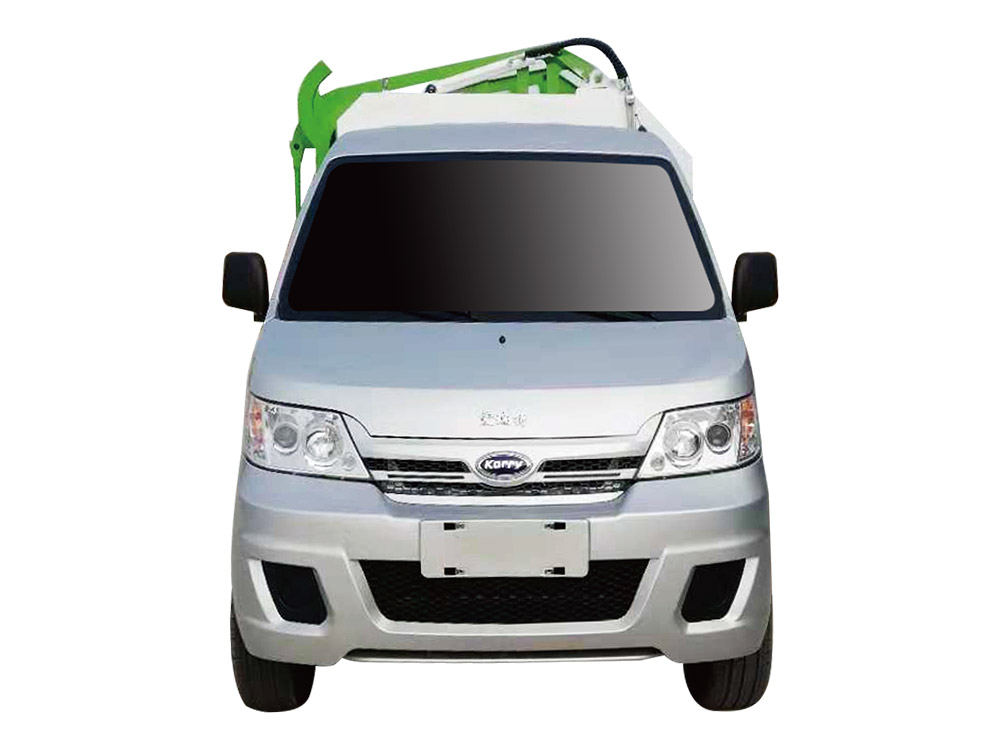

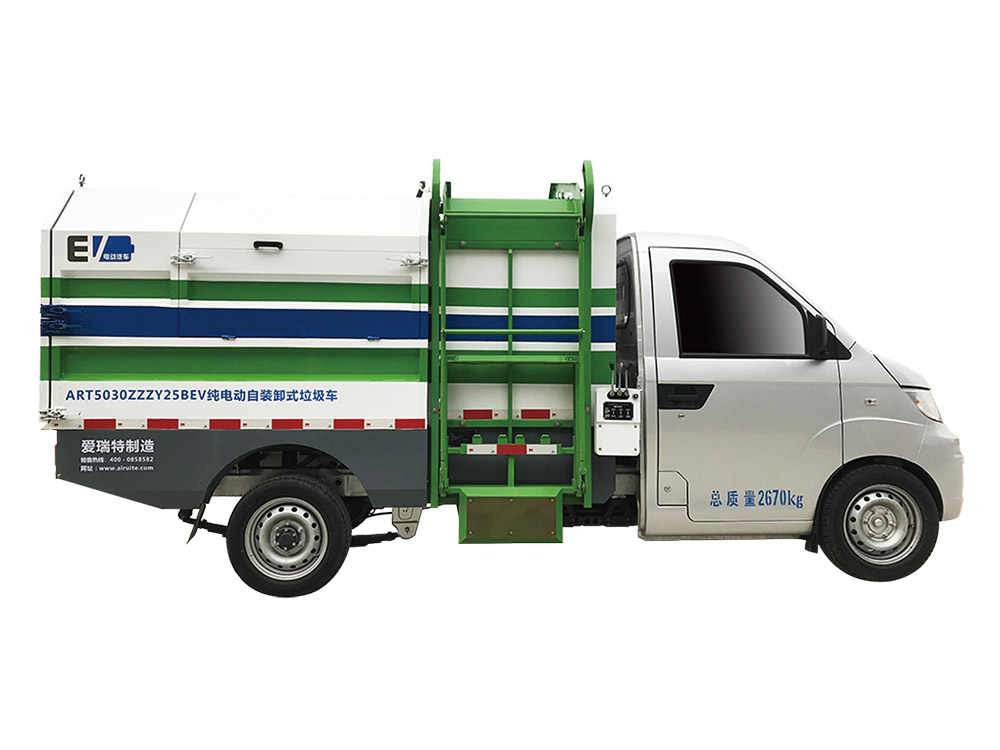

ART5030ZZZY25BEV Pure electric garbage collection vehicle is mainly used for classified collection and transportation of barreled garbage in residential areas, towns, commercial areas, tourist attractions, schools and other places. It can also collect garbage in fruit bags and bags. Pure electric operation has the advantages of low cost and zero emission.
◆ Box: high quality and high strength steel plate, electrophoresis antirust treatment, corrosion resistance;

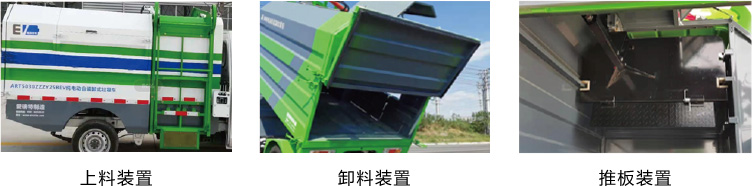

◆ Feeding system: side double hydraulic pull rod bucket turnover mechanism feeding;
◆ Unloading system: rear tipping high tipping carriage;
◆ Pushing plate device: horizontal compression pushing plate is built in the box, which can improve the loading capacity of the box.
| Parameters | ART5030ZZZY25BEV Pure electric garbage truck |
| Chassis model / brand | SQR1032BEVH08-E/karry |
| Total mass | 2670kg |
| curb weight | 1950kg |
| wheelbase | 3050mm |
| Battery brand | GuoXuan hi tech (LiFePO4) |
| Battery capacity | 41.34kWh |
| Maximum speed | 105km/h |
| Maximum climbing gradient | 20% |
| Minimum turning radius | 6m |
| Volume of garbage can | 4.5m3 |
| Feeding cycle time | ≤20s |
| Discharge cycle time | ≤30s |
| Overall dimension (L × w × h) | 4930×1710×2325mm |
